frame frame
KELLYS Dirt 26, tapered HT, ISCG 05
fork fork
SR SUNTOUR XCM (26), 100 mm, coil spring
crankset crankset
SAMOX (32T) - length 170 mm
r/derailleur r/derailleur
SHIMANO Acera M360 (direct mount)
chain guide MOZARTT Presto, ISCG 05
shifters shifters
SHIMANO SL-M310 Rapidfire Plus
speed speed
cassette sprocket cassette sprocket
SHIMANO CS-HG200-7 (12-32T)
chain chain
KMC Z7 (106 links)
brakes brakes
C-Star CX7 Mechanical Disc
brake levers brake levers
brake rotors brake rotors
160 mm front / 160 mm rear
hubs hubs
KT Disc (32 holes)
rims rims
KLS Draft Disc 559x21 (32 holes)
spokes spokes
tires tires
KENDA Small Block Eight 58-559 (26x2.35)
head parts head parts
b.b.parts b.b.parts
SAMOX cartridge
stem stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 45 mm
handlebar handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 38 mm / width 740 mm
grips grips
seat post seat post
KALLOY - diam 30.9 mm / length 300 mm
saddle saddle
KLS Vader
pedals pedals
KLS Flat - plastic platform
frame size frame size
M / L

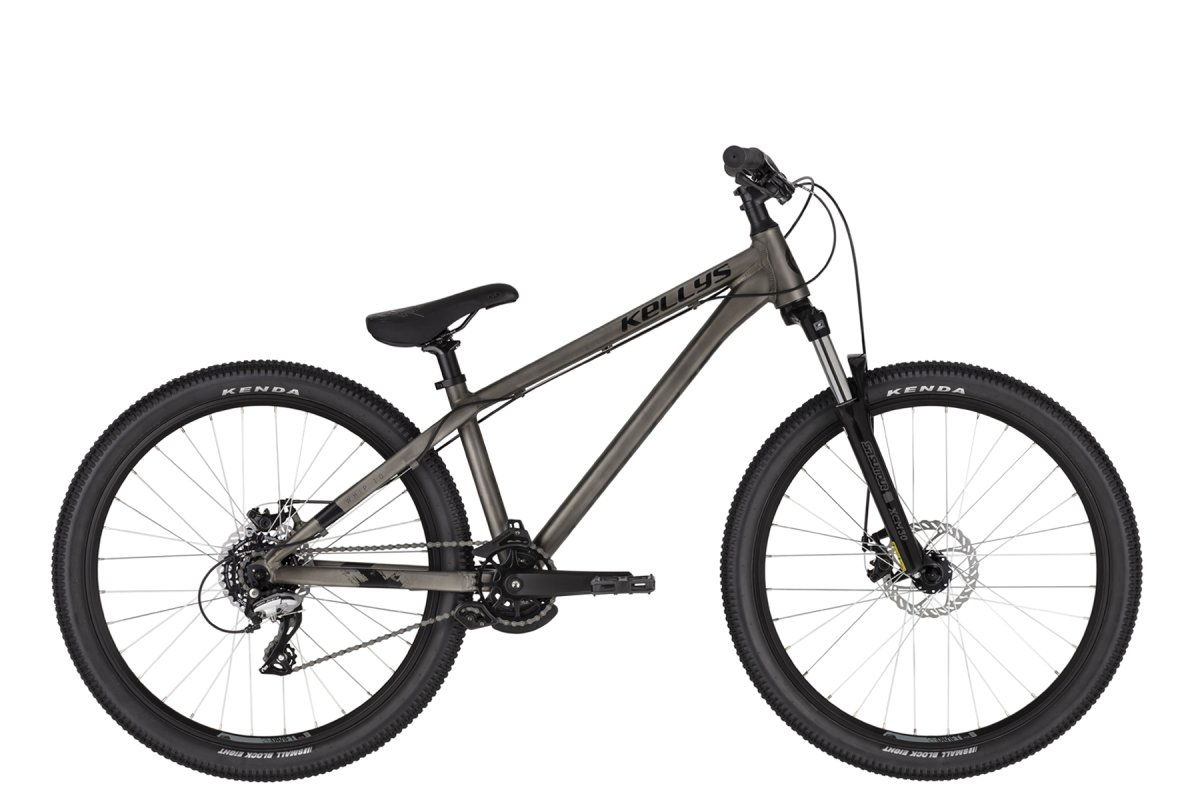

Geometria WHIP 10 RAW
Veľkosť rámu WHIP 10 RAW
