frame
KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle

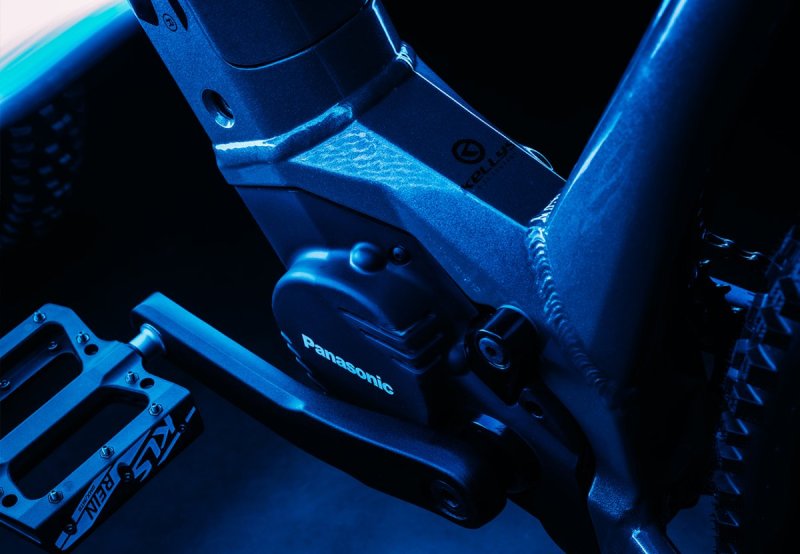

motor
PANASONIC GX Ultimate, 95 Nm, 36 V
battery
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ
switch unit
PANASONIC

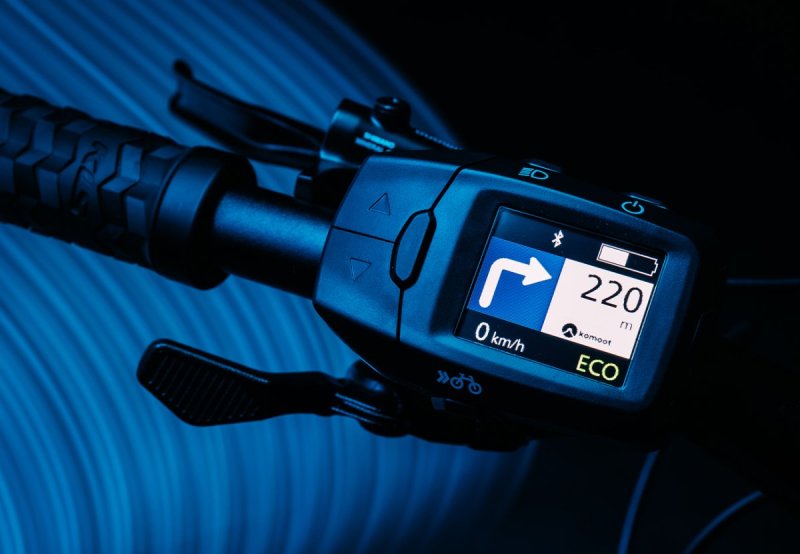

computer display
PANASONIC Bluetooth® 5.0 navigation Side Color Display
fork
SR SUNTOUR Raidon 34 LOR DS (29") Boost, 120 mm, air / 15 mm thru axle
crankset
SAMOX (34T) - length 170 mm
r/derailleur
SHIMANO Deore M5120 (direct mount)
shifters
SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
speed
10
cassette sprocket
SHIMANO CS-M4100-10 (11-46T)
chain
KMC e10T (116 links)
brakes
SHIMANO MT200 Hydraulic Disc
brake levers
SHIMANO BL-MT200
brake rotors
180 mm front / 180 mm rear
hubs
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims
KLS Valor 3 Disc 622x30 (32 holes)
spokes
stainless steel black
tires
SCHWALBE Nobby Nic Performance 60-622 (29"x2.35) ADDIX, folding
head parts
FSA 1.5 semi-integrated
thru axle
SR SUNTOUR 15x110 mm front / NOVATEC 12x181 mm rear
stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm
handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm
grips
KLS Poison OneLockon
seat post
KLS Active - diam 30.9 mm / length 350 mm
saddle
SELLE ROYAL Vivo
pedals
plastic
frame size
M / L / XL
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
