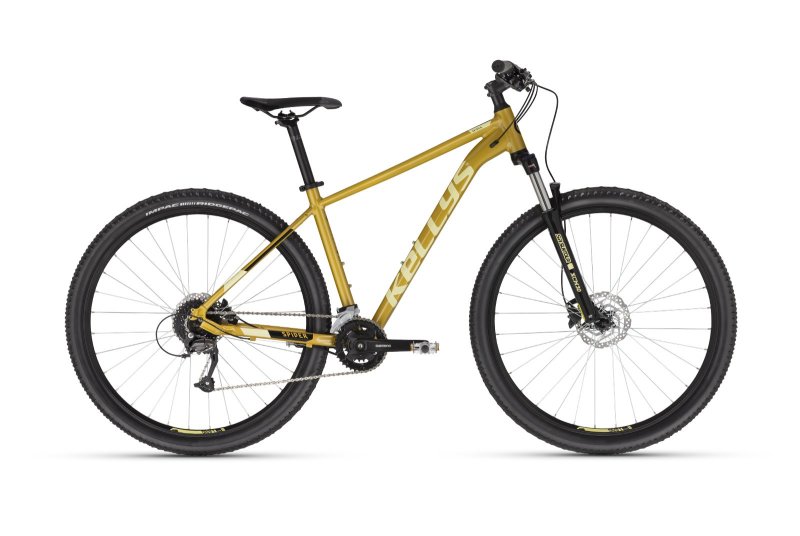

SPIDER 70 YELLOW 27.5"

Horský bicykel


frame frame
KELLYS Alutec RRC 27.5 - Race Ready Concept
fork fork
SR SUNTOUR XCM HLO (27.5), 100 mm, coil / Speed Lockout
crankset crankset
SHIMANO Alivio MT101-2 (36x22T) - length 170 mm (S), 175 mm (M)
r/derailleur r/derailleur
SHIMANO Altus M2000 (direct mount) alebo microSHIFT Marvo M46
f/derailleur
SHIMANO Altus M2020 (34.9 mm)
shifters shifters
SHIMANO Altus SL-M2010-9 Rapidfire Plus
speed speed
18
cassette sprocket cassette sprocket
SHIMANO CS-HG200-9 alebo DTS-9 (11-34T)
chain chain
KMC X9 (108 links)
brakes brakes
SHIMANO MT200 Hydraulic Disc or KLS 1600 Hydraulic Disc
brake levers brake levers
SHIMANO BL-MT200 or KLS 1600
brake rotors brake rotors
160 mm front / 160 mm rear
hubs hubs
alloy / SHIMANO TX505 Disc Center Lock (32 holes)
rims rims
KLS Draft Disc 584x21 (32 holes)
spokes spokes
steel
tires tires
IMPAC Ridgepac 54-584 (27.5x2.10)
head parts head parts
semi-integrated
b.b.parts b.b.parts
cartridge (122 mm)
stem stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm
handlebar handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M)
grips grips
KLS Advancer 2Density
seat post seat post
KLS Active - diam 30.9 mm / length 300 mm (S - M)
saddle saddle
KLS Sentinel 2
pedals pedals
alloy
frame size frame size
S / M
Geometria SPIDER 70 YELLOW 27.5"
Veľkosť rámu SPIDER 70 YELLOW 27.5"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
