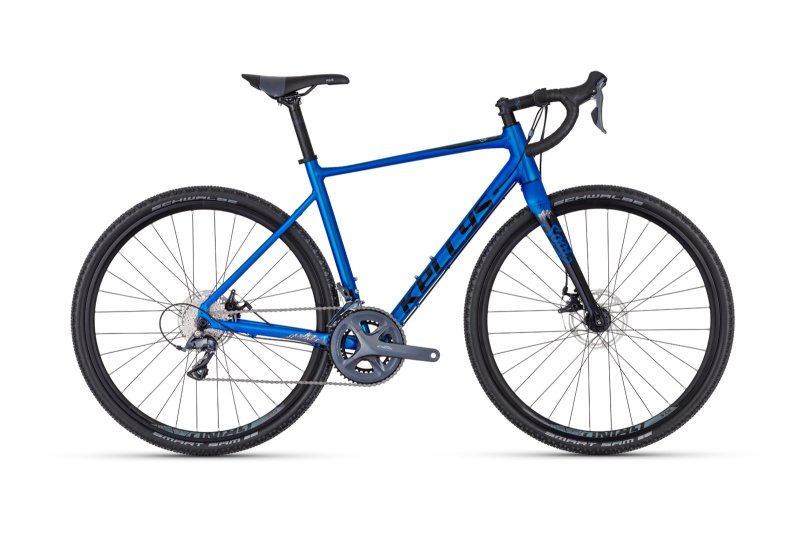

SOOT 30

frame frame
KELLYS Gravel Concept Aluminium alloy Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
fork fork
KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle
crankset crankset
SHIMANO Claris R2000 (50x34T) - length 170 mm (S - M), 175 mm (L - XL)
r/derailleur r/derailleur
SHIMANO Claris R2000 (direct mount)
f/derailleur
SHIMANO Claris R2000 (braze on)
shifters shifters
SHIMANO Claris ST-R2000 Dual Control
speed speed
16
cassette sprocket cassette sprocket
SHIMANO CS-HG50-8 (11-32T)
chain chain
KMC Z8 (112 links)
brakes brakes
TEKTRO Spyre Mechanical Disc
brake levers brake levers
SHIMANO Claris ST-R2000 Dual Control
brake rotors brake rotors
160 mm front / 160 mm rear
hubs hubs
NOVATEC Disc (32 holes)
rims rims
KELLYS Grind Disc 622x17 (32 holes / eyelets)
spokes spokes
stainless steel black
tires tires
SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
head parts head parts
FSA 1.5 semi-integrated
b.b.parts b.b.parts
SHIMANO BB-RS500
thru axle thru axle
Mr.control 12x118 mm front / NOVATEC 12x162 mm rear
stem stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L), 120 mm (XL)
handlebar handlebar
GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L), 460 mm (XL)
grips grips
KLS bar tape
seat post seat post
KLS Active Road - diam 30.9 mm / length 350 mm (S), 400 mm (M - XL)
saddle saddle
WTB Volt
frame size frame size
S / M / L / XL
Geometria SOOT 30
Veľkosť rámu SOOT 30

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
