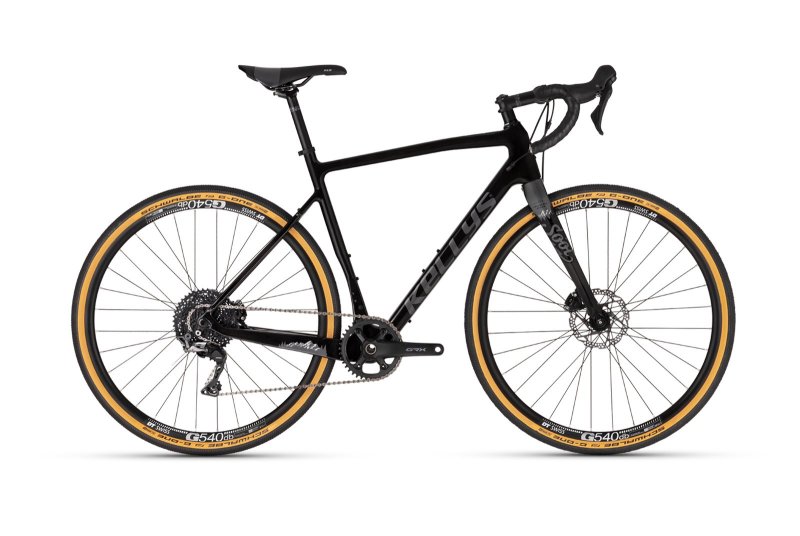

SOOT 90

frame frame
KELLYS Gravel Concept Carbon Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
fork fork
KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle
crankset crankset
SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
r/derailleur r/derailleur
SHIMANO GRX RX812 (direct mount)
shifters shifters
SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
speed speed
11
cassette sprocket cassette sprocket
SunRace CSMS7 (11-42T)
chain chain
KMC X11 EL (112 links)
brakes brakes
SHIMANO GRX RX400 Hydraulic Disc
brake levers brake levers
SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
brake rotors brake rotors
160 mm front / 160 mm rear
hubs hubs
NOVATEC Disc (32 holes)
rims rims
DT SWISS G 540 Disc 700Cx24 (32 holes)
spokes spokes
stainless steel black
tires tires
SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding
head parts head parts
FSA 1.5 semi-integrated
b.b.parts b.b.parts
SHIMANO Press-Fit BB-RS500-PB
thru axle thru axle
Mr.control 12x118 mm front / NOVATEC 12x172 mm rear
stem stem
KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
handlebar handlebar
GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips grips
KLS bar tape
seat post seat post
KLS Active Road - diam 27.2 mm / length 350 mm (S), 400 mm (M - L)
saddle saddle
WTB Volt
frame size frame size
S / M / L
Geometria SOOT 90
Veľkosť rámu SOOT 90
